LHCb Velo Channel Mapping

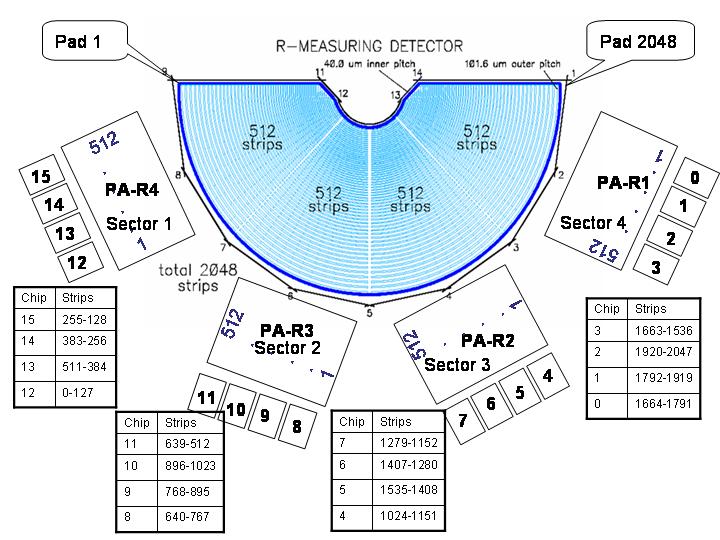

R sensor channel maps.
Pictorial
Ordered by sensor pad number
Ordered by s/w strip number
Ordered by chip/channel number
Enter sensor pad number
Enter software strip number

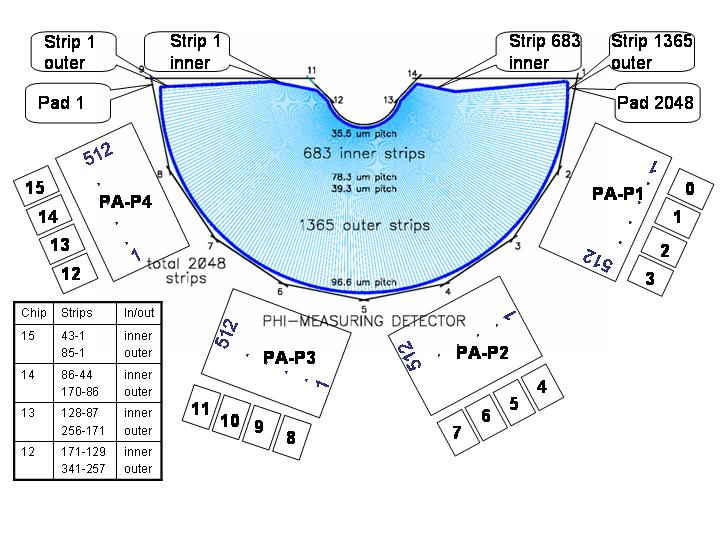

P sensor channel maps.
Pictorial
Ordered by sensor pad number
Ordered by s/w strip number
Ordered by chip/channel number
Enter sensor pad number
Enter software strip number
Enter Sensor type, chip (0-15) and channel (0-127) number:
P
R
